\(QS8_{8}^{(1)}\)
Description

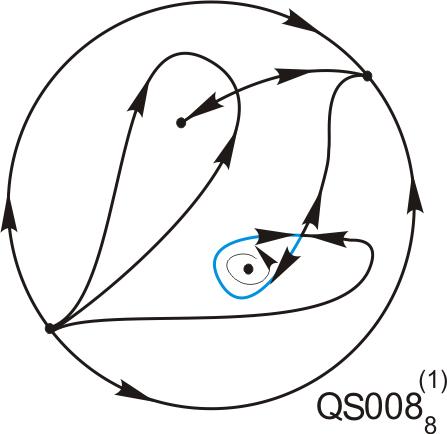

Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(8\) | \(4410\) | \(32\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = y+3 \, x^{2}-10 \, x \, y \\ \dot{y} = x^{2}+2 \, d \, x \, y+(d^{2}-1) \, y^{2}+c+b \, y+a \, (y+3 \, x^{2}-10 \, x \, y) \end{cases}\]
with parameters: \(b = 0.01, \quad c = -0.0000000001, \quad d = \frac{-16}{10}, \quad a = -0.027\)

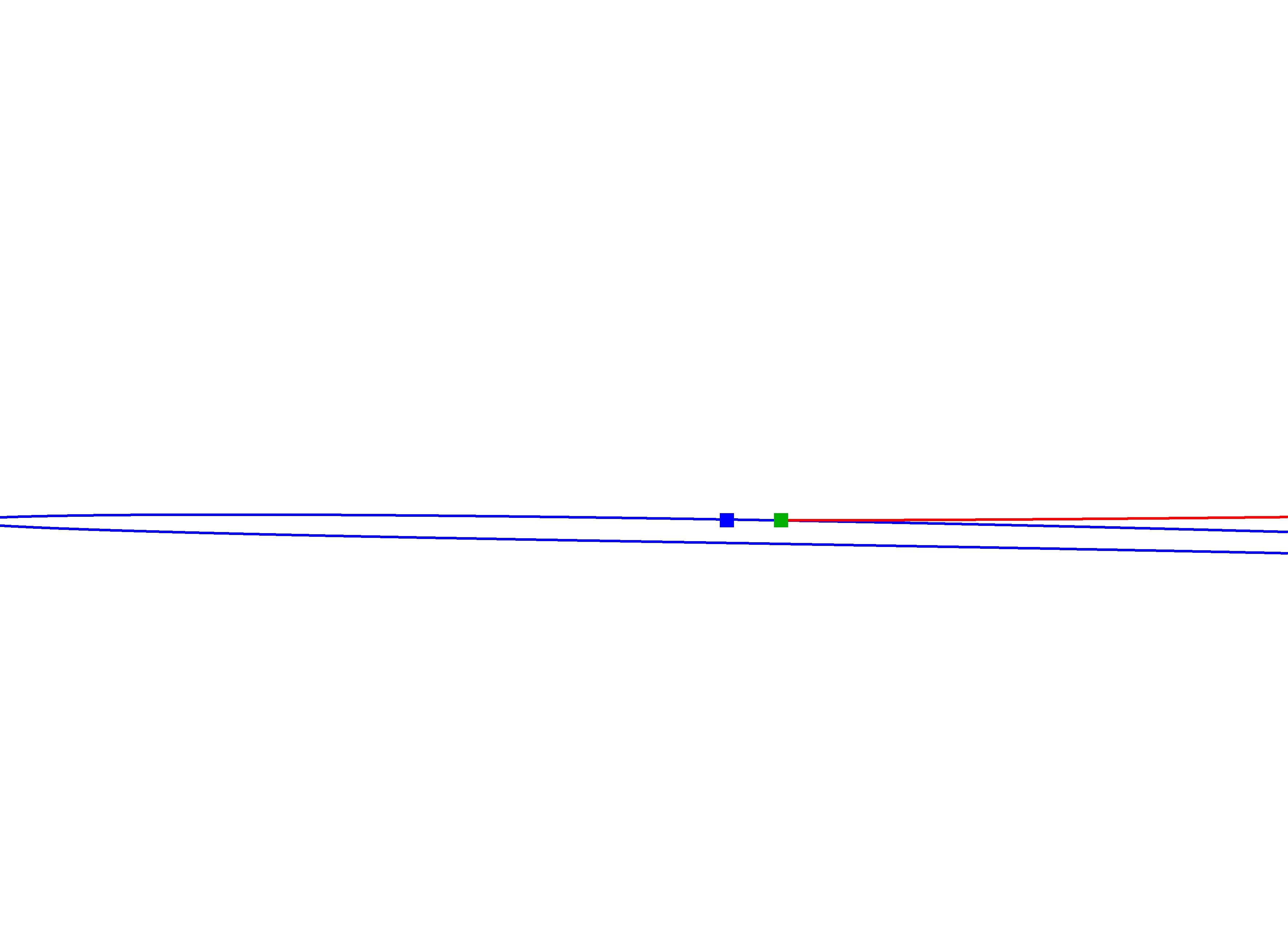

has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With name \(U^1_{D9}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.Note (for name \(U^1_{D9}\)): orbit inside the graphic must be repellor and rotate opposite.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS8_{2}^{(0)}\) and \(QS8_{3}^{(0)}\).
